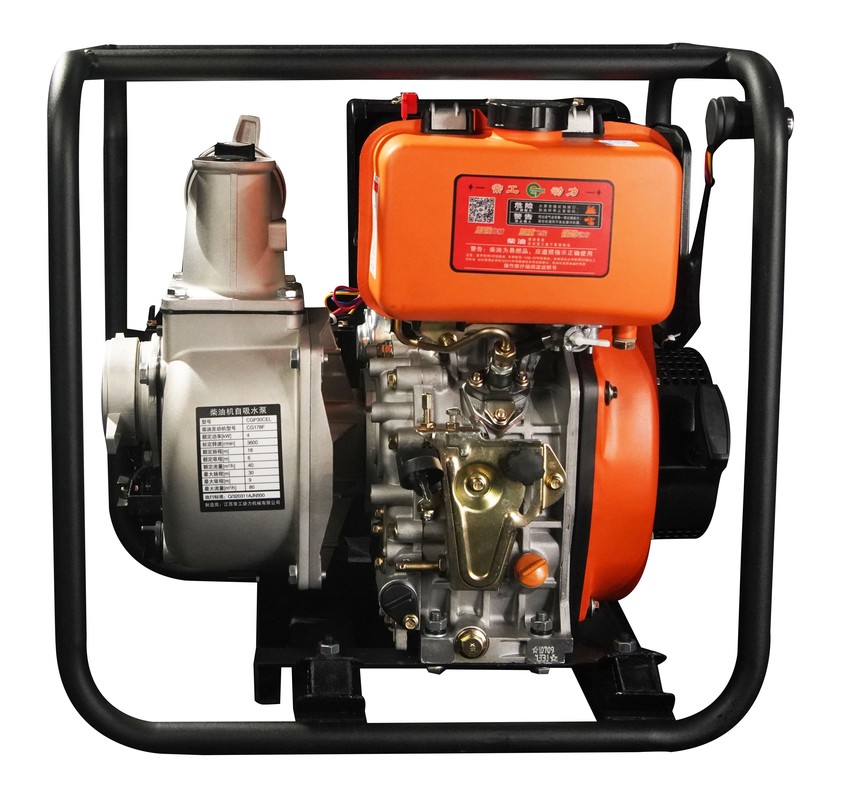

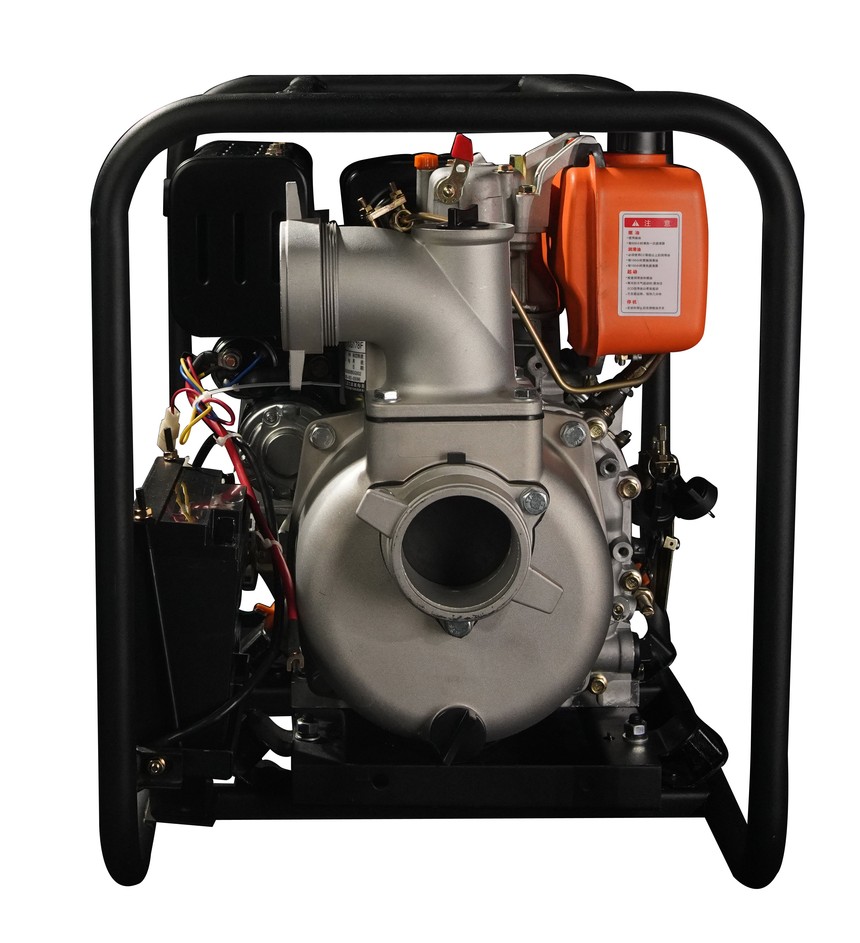

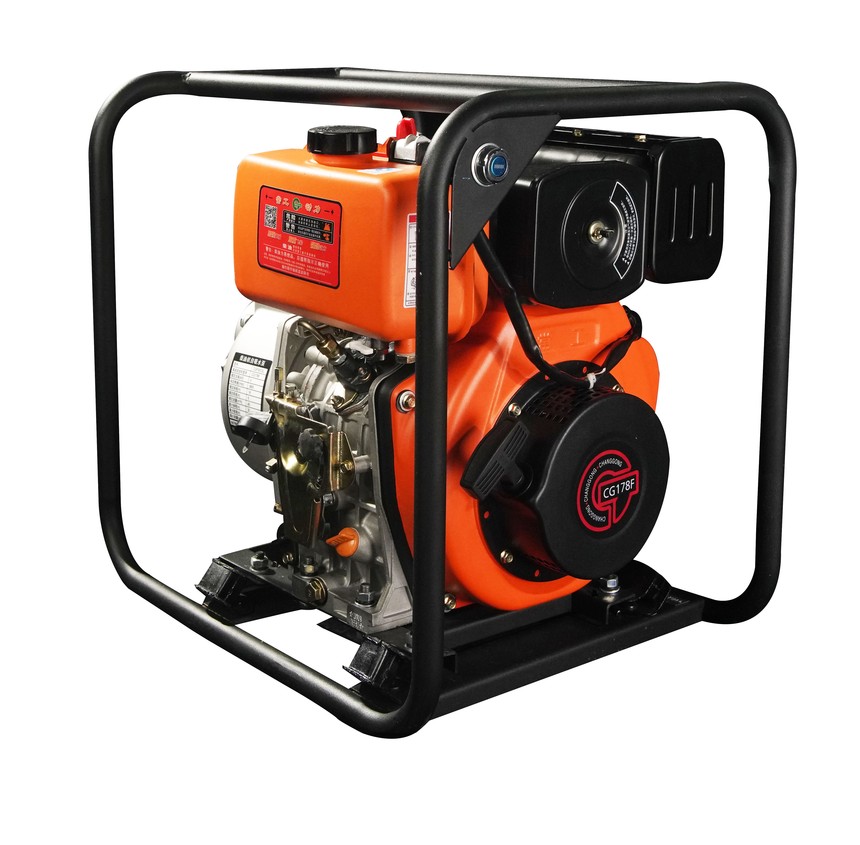

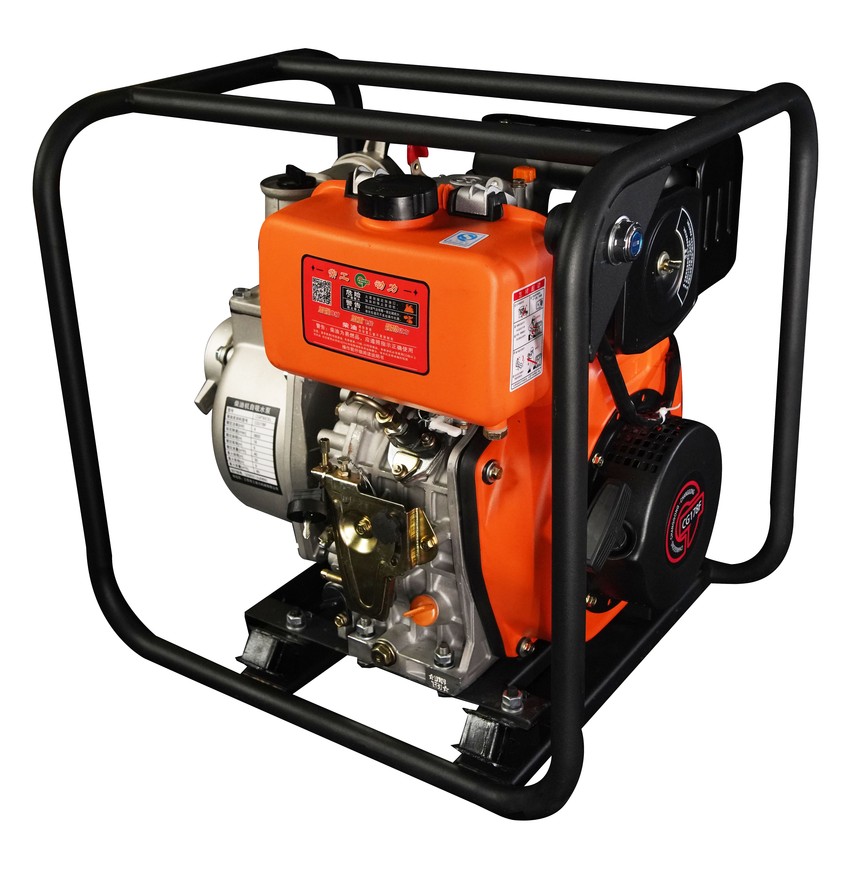

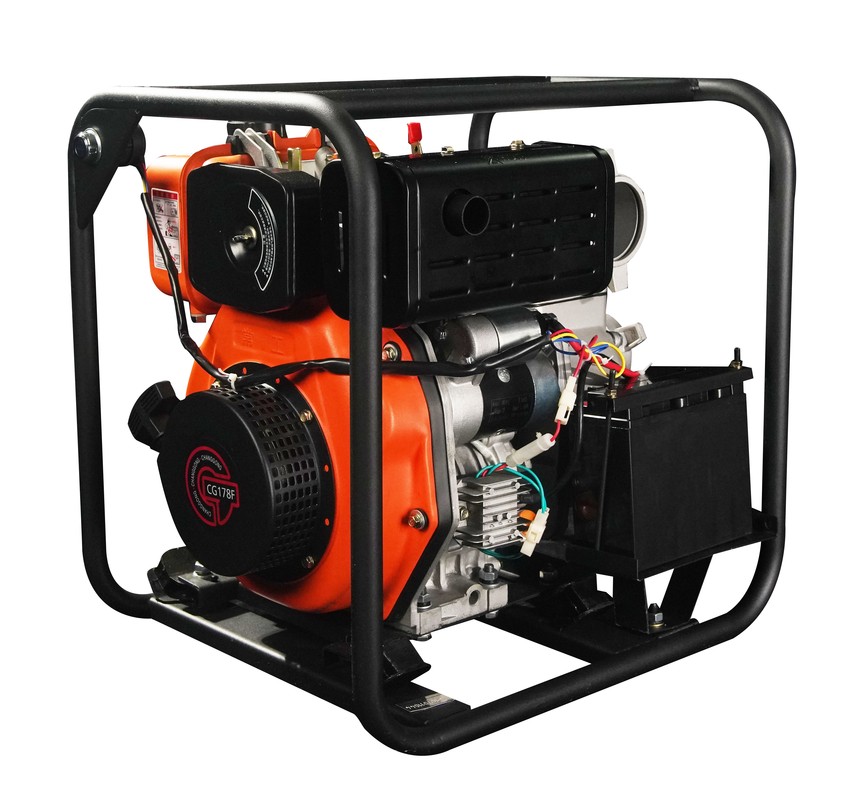

水泵CGP30小油箱
系列/SERIES參數(shù)/SpecificationModelCGP20B（E）LCGP20CG(E)LCGP30B(E)LCGP30C(E)LCGP40D(E)LCGP60FEL額定揚程m/Rated pump head206018181013額定吸程m/Rated suction head666655額定流量m3/h/Rated flow2012404050130最大揚程m/Max pump head358030301815最大吸程m/Max suction head999976最大流量m3/h/Max flow4018808010
| 系列/SERIES | 參數(shù)/Specification | Model | |||||
| CGP20B（E）L | CGP20CG(E)L | CGP30B(E)L | CGP30C(E)L | CGP40D(E)L | CGP60FEL | ||
| 額定揚程m/Rated pump head | 20 | 60 | 18 | 18 | 10 | 13 | |
| 額定吸程m/Rated suction head | 6 | 6 | 6 | 6 | 5 | 5 | |
| 額定流量m3/h/Rated flow | 20 | 12 | 40 | 40 | 50 | 130 | |
| 最大揚程m/Max pump head | 35 | 80 | 30 | 30 | 18 | 15 | |
| 最大吸程m/Max suction head | 9 | 9 | 9 | 9 | 7 | 6 | |
| 最大流量m3/h/Max flow | 40 | 18 | 80 | 80 | 100 | 150 | |
| 動力型號/Power mode | CG173F | CG178F | CG173F | CG178F | CG186F | CG192F | |
| 起動方式/Start mode | 回彈式繩索起動或電起動/Rope start or electric start | ||||||
| 動力類別/Power style | 單缸，風冷，四沖程，立式/Single cylinder,Water-cooled,Four stoke,Vertical type | ||||||
| 缸徑(mm)/Cylinder bore | 73 | 78 | 73 | 78 | 86 | 92 | |
| 行程(mm)/Piston stroke | 59 | 62 | 59 | 62 | 72 | 75 | |
| 排量（L）/Displacement | 0.247 | 0.296 | 0.247 | 0.296 | 0.418 | 0.499 | |
| 壓縮比/Compression ratio | 19 | ||||||
| 轉(zhuǎn)速(rpm)/Speed | 3600 | ||||||
| 發(fā)動機功率(kw)/Engine power | 3.4 | 3.7 | 3.4 | 3.7 | 5.7 | 7.5 | |
| 機油容量（L）/Capacity of oil | 0.75 | 1.1 | 0.75 | 1.1 | 1.65 | ||
| 標定點燃油耗（g/kw.h）/Fuel consumption | 280 | ||||||
| 燃油牌號/Fuel number | 柴油：0#（夏）-10（冬）Fuel:0#（Summer),-10(Winter) | ||||||
| 機油牌號/Oil number | SAE10W30(CD級以上) | ||||||
| 可選配置/Optional configuration | 大油箱/Big fuel tank | ||||||
| 外形尺寸（長*寬*高）（mm）/Overall dimension | 510*455*515 | 565*455*550 | 510*455*515 | 565*455*550 | 655*470*610 | 810*594*815 | |
| 凈重（kg）/Net weight | 48 | 58 | 49 | 55 | 77 | 116 | |
