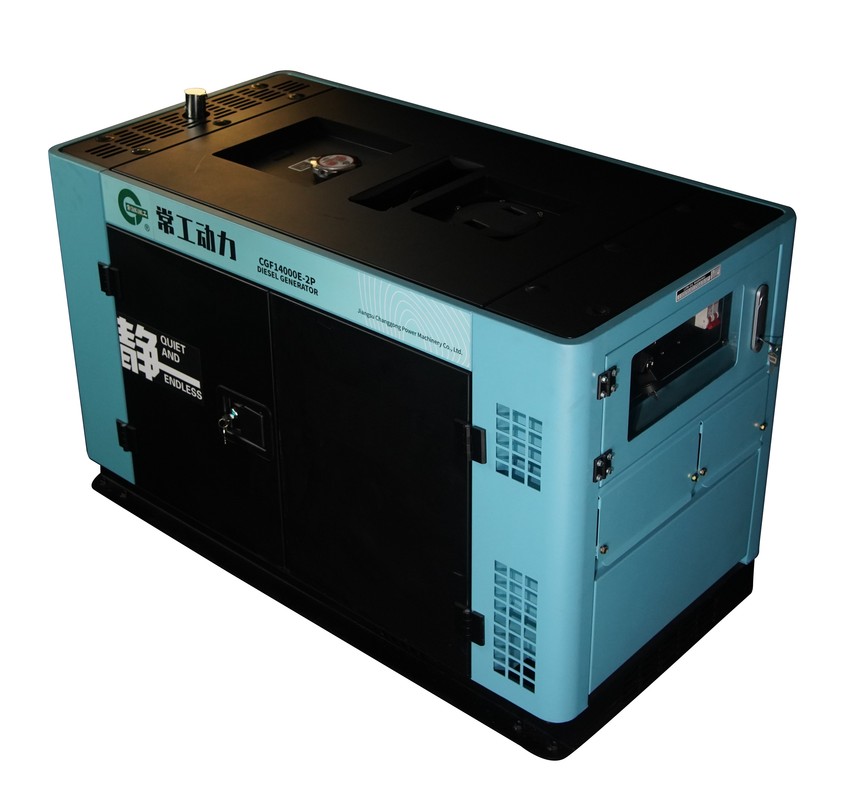

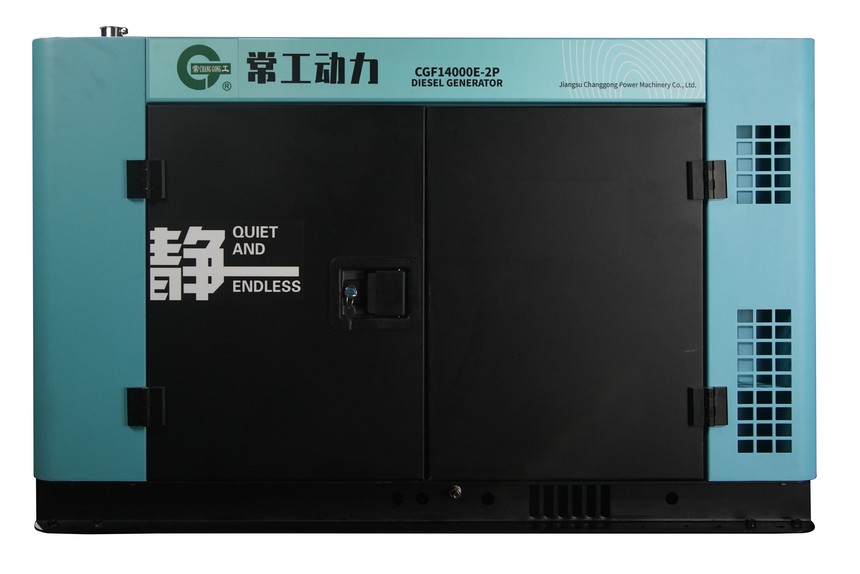

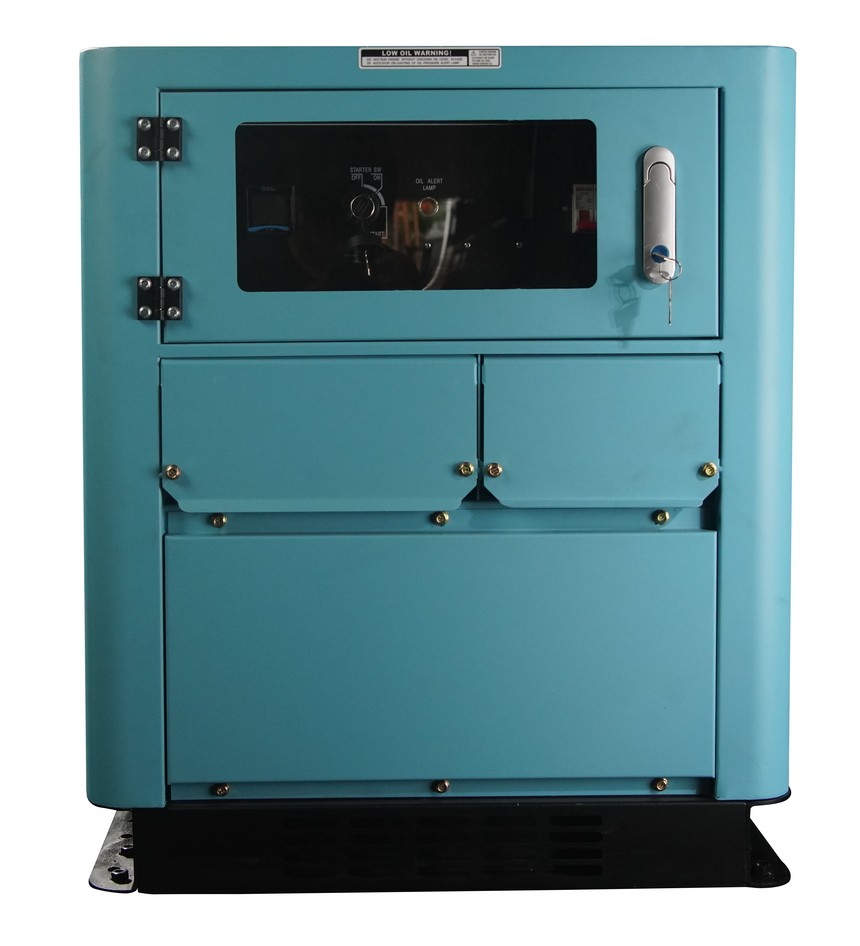

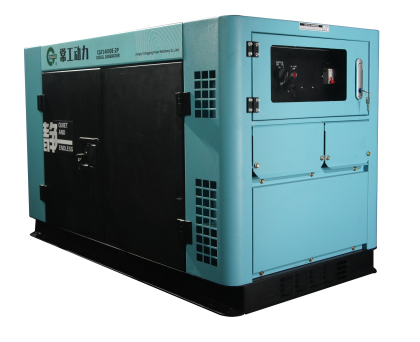

CGF14000T-2P靜音
系列參數機型CGF14000T-3DCGF16000T-3D靜音二缸柴油發電機組/Silent type generator set頻率（Hz）/Frequency50電壓（V）Voltage230(400)額定功率(kVA)/Rated frequency10（12.5）12(15)最大功率(kVA)/Rated power11（13.75）13(16)相數/Number of phase單相（三相）/Single phas(3 phase)勵磁方式/Excitation mode有刷自勵
| 系列 | 參數 | 機型 | |
| CGF14000T-3D | CGF16000T-3D | ||
| 靜音二缸柴油發電機組/Silent type generator set | 頻率（Hz）/Frequency | 50 | |
| 電壓（V）Voltage | 230(400) | ||
| 額定功率(kVA)/Rated frequency | 10（12.5） | 12(15) | |
| 最大功率(kVA)/Rated power | 11（13.75） | 13(16) | |
| 相數/Number of phase | 單相（三相）/Single phas(3 phase) | ||
| 勵磁方式/Excitation mode | 有刷自勵磁/Self excitation with brush | ||
| 功率因數（Φ）/Power factor | 1.0（0.8） | ||
| 絕緣等級/Insulation class | F | ||
| 油箱容量（L）/Capacity of fuel tank | 34 | ||
| 機架類型/Frame type | 35方管/Square tube | ||
| 動力型號/Power model | CG290F | CG292F | |
| 起動方式/Start mode | 電起動/Electric start | ||
| 動力類別/Power style | 雙缸，風冷，四沖程，立式/Two cylinders,Aircooled,Four stroke,Vertical type | ||
| 缸徑/Cylinder bore | 90 | 92 | |
| 行程/Piston stroke | 75 | 75 | |
| 排量（L）//Displacement | 0.954 | 0.997 | |
| 壓縮比/Compression ration | 19 | ||
| 轉速/Speed | 3000 | ||
| 發動機功率/Engine power | 13.53 | 14.96 | |
| 機油容量（L）/Capacity of oil | 2 | ||
| 標定點燃油耗（g/kw.h）/Fuel consumption | 240 | ||
| 燃油牌號/Fuel number | 柴油：0#（夏）-10（冬）Fuel:0#（Summer),-10(Winter) | ||
| 機油牌號/Oil number | SAE10W30(CF級以上) | ||
| 可選配置/Optional configuration | TAS,電加熱，遙控/TAS,Electrical heating,Remote control | ||
| 外形尺寸（長*寬*高）（mm）/Overall dimension | 1250*650*760 | ||
| 凈重/Net weight | 320 | ||
