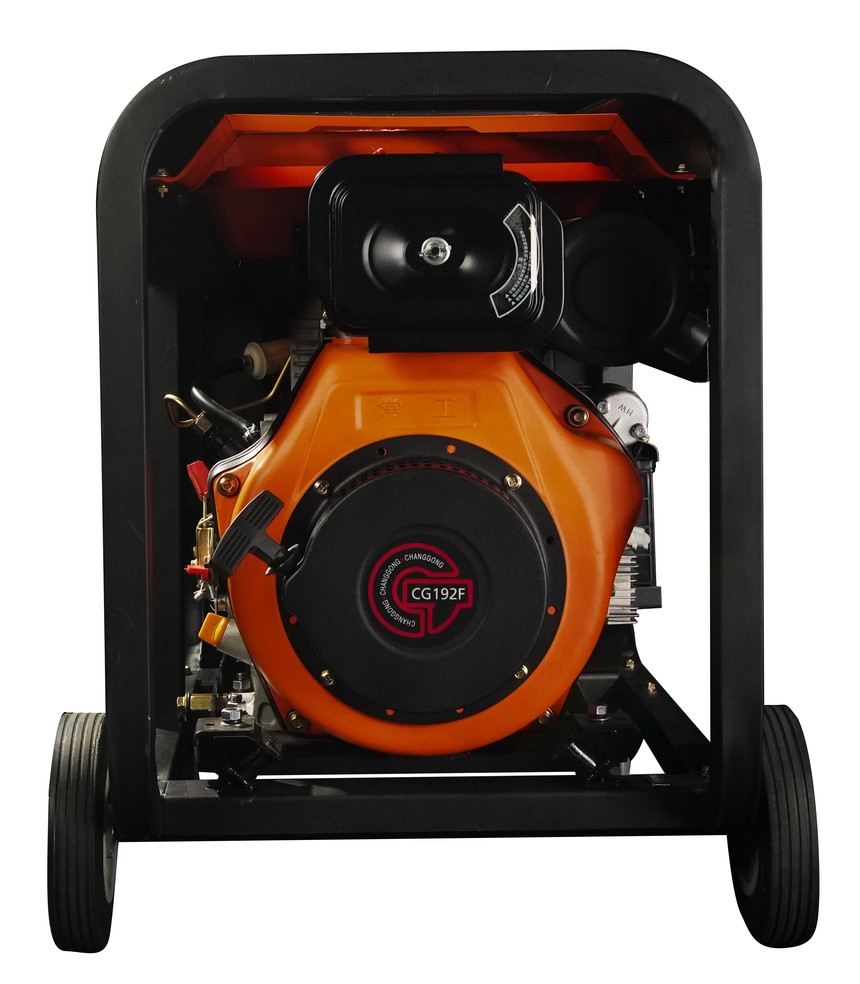

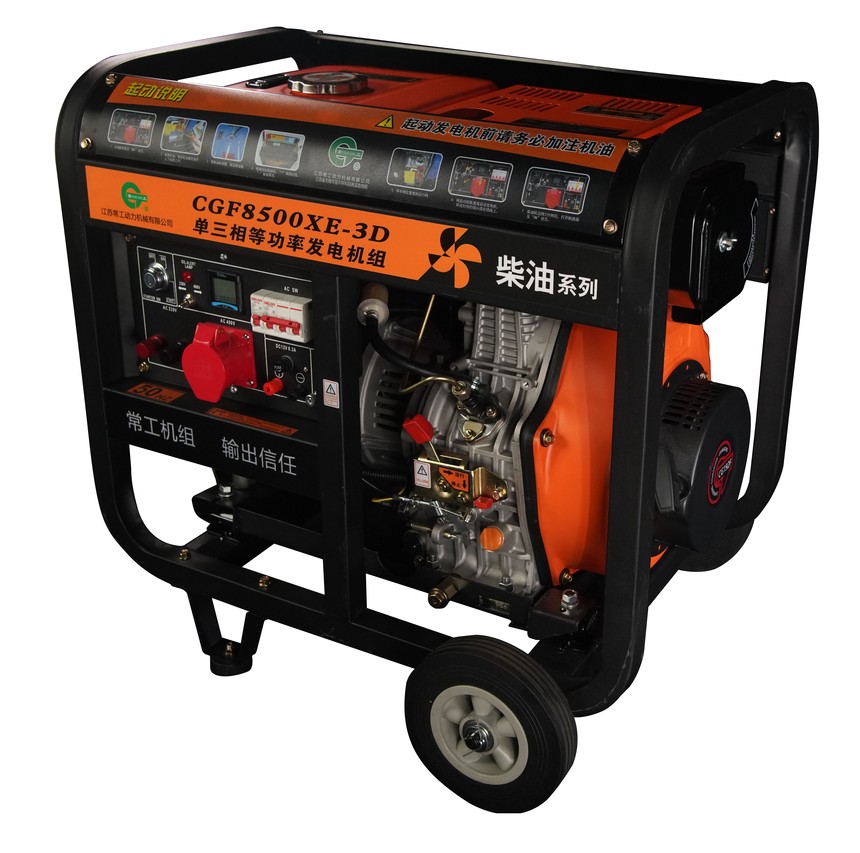

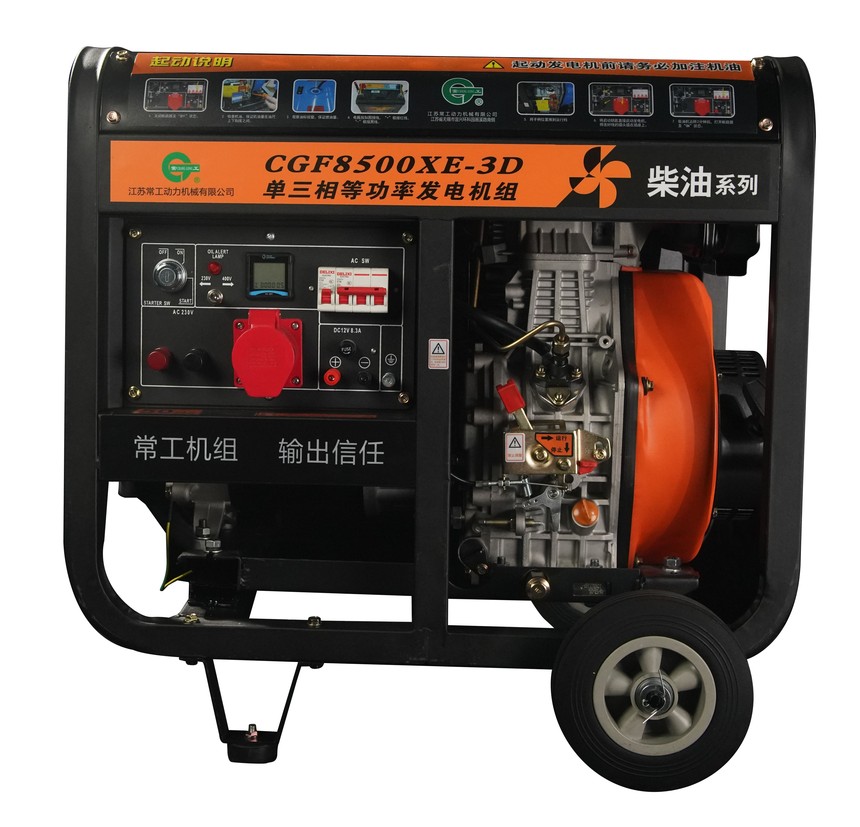

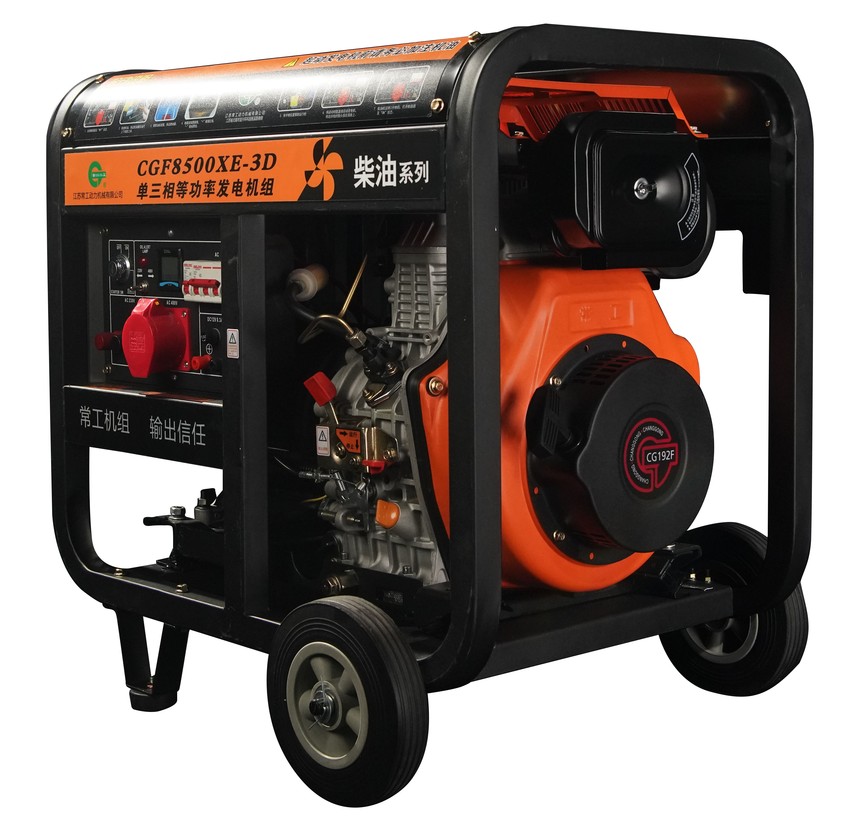

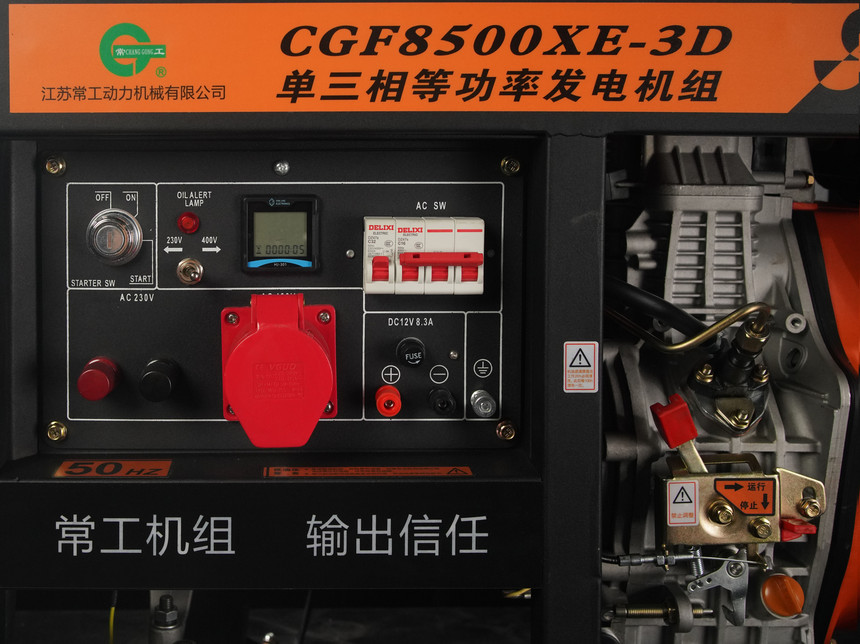

CGF8500XE-3D
系列/Series參數機型CGF6700XE-3DCGF7500XE-3DCGF8500XE-3DCGF10000XE-3DCGF12000XE-3D開架單缸柴油發電機組/Open type generator set頻率（Hz）/Frequency50電壓（V）Voltage230(400)額定功率(kVA)/Rated frequency4.5(5.6)5.5(6.9)6.5(8.1)7.5(9.4)7.5(9.4)最大功率(kVA)/Rated power5.0(6.3)6(7.5)7(8.8)8(10)8(10)相數/
| 系列/Series | 參數 | 機型 | ||||
| CGF6700XE-3D | CGF7500XE-3D | CGF8500XE-3D | CGF10000XE-3D | CGF12000XE-3D | ||
| 開架單缸柴油發電機組/Open type generator set | 頻率（Hz）/Frequency | 50 | ||||
| 電壓（V）Voltage | 230(400) | |||||
| 額定功率(kVA)/Rated frequency | 4.5(5.6) | 5.5(6.9) | 6.0(7.5) | 6.5(8.1) | 8.5(10.6) | |
| 最大功率(kVA)/Rated power | 5.0(6.3) | 6(7.5) | 6.6(8.2) | 7.1(8.9) | 9.3(11.6) | |
| 相數/Number of phase | 單相（三相） | |||||
| 勵磁方式/Excitation mode | 有刷自勵磁/Self excitation with brush | |||||
| 功率因數（Φ）/Power factor | 1.0（0.8） | |||||
| 絕緣等級/Insulation class | F | |||||
| 油箱容量（L）/Capacity of fuel tank | 12.5 | |||||
| 機架類型/Frame type | 35方管/Square tube | |||||
| 動力型號/Power model | CG186F | CG188F | CG192F | CG195F | CG1100F | |
| 起動方式/Start mode | 電起動/Electric start | |||||
| 動力類別/Power style | 單缸，風冷，四沖程，立式/Single cylinder,Water-cooled,Four stoke,Vertical type | |||||
| 缸徑/Cylinder bore | 86 | 88 | 92 | 95 | 100 | |
| 行程/Piston stroke | 72 | 75 | 75 | 75 | 85 | |
| 排量（L）//Displacement | 0.418 | 0.456 | 0.499 | 0.532 | 0.667 | |
| 壓縮比/Compression ration | 19 | |||||
| 轉速/Speed | 3000 | |||||
| 發動機功率/Engine power | 5.7 | 6.3 | 7.5 | 8.0 | 10.5 | |
| 機油容量（L）/Capacity of oil | 1.65 | |||||
| 標定點燃油耗（g/kw.h）/Fuel consumption | 280 | |||||
| 燃油牌號/Fuel number | 柴油：0#（夏）-10（冬）Fuel:0#（Summer),-10(Winter) | |||||
| 機油牌號/Oil number | SAE10W30(CD級以上) | |||||
| 可選配置/Optional configuration | ATS,電加熱，遙控,一鍵啟動/ATS,Electrical heating,Remote control,One click start | |||||
| 外形尺寸（長*寬*高）（mm）/Overall dimension | 740×510×630 | |||||
| 凈重/Net weight | 120 | 121 | 122 | 124 | 126 | |
